钨钢材质:0.6μ 螺旋角：35度 涂层：UNICO
适用：适合深加工用，建议加工HRC55度以内之钢料
适用加工材料：
碳素钢 | 合金钢 | 工具钢 | 调质钢 | 铸铁 | 不锈钢 |
S45C,S50C | SCM | SKT.SKD | HRC35-55 | FC,FCD | SUS |

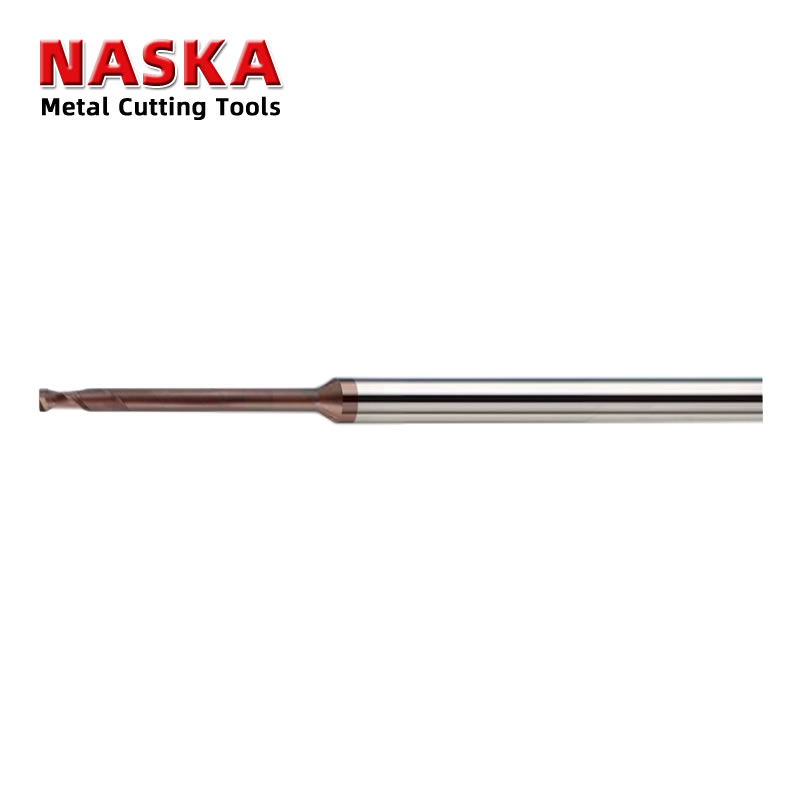

深沟2刃平刀 | |||||||
订单编号 | 刃径 | 刃长 | 有效长 | 全长 | 柄径 | 刃数 | RMB/PC |
KF520.2ET.D10.050.4 | 1.0 | 1.5 | 7.5 | 50 | 4 | 2 | 118.0 |
KF520.2ET.D10.050.4 | 1.0 | 1.5 | 11.5 | 50 | 4 | 2 | 118.0 |
KF520.2ET.D12.050.4 | 1.2 | 2.0 | 8.0 | 50 | 4 | 2 | 128.0 |
KF520.2ET.D12.050.4 | 1.2 | 2.0 | 12 | 50 | 4 | 2 | 128.0 |
KF520.2ET.D15.050.4 | 1.5 | 2.5 | 10.5 | 50 | 4 | 2 | 118.0 |
KF520.2ET.D15.050.4 | 1.5 | 2.5 | 18.5 | 50 | 4 | 2 | 128.0 |
KF520.2ET.D18.050.4 | 1.8 | 3.0 | 11 | 50 | 4 | 2 | 118.0 |
KF520.2ET.D18.050.4 | 1.8 | 3.0 | 19 | 50 | 4 | 2 | 128.0 |
KF520.2ET.D20.050.4 | 2.0 | 3.0 | 11 | 50 | 4 | 2 | 118.0 |
KF520.2ET.D20.050.4 | 2.0 | 3.0 | 19 | 50 | 4 | 2 | 128.0 |
KF520.2ET.D20.060.4 | 2.0 | 3.0 | 23 | 60 | 4 | 2 | 128.0 |
KF520.2ET.D25.050.4 | 2.5 | 3.5 | 15.5 | 50 | 4 | 2 | 118.0 |
KF520.2ET.D25.060.4 | 2.5 | 3.5 | 23.5 | 60 | 4 | 2 | 138.0 |
KF520.2ET.D30.060.6 | 3.0 | 4.5 | 16.5 | 60 | 6 | 2 | 168.0 |
KF520.2ET.D30.075.6 | 3.0 | 4.5 | 24.5 | 75 | 6 | 2 | 178.0 |
KF520.2ET.D40.075.6 | 4.0 | 6.0 | 26 | 75 | 6 | 2 | 178.0 |
KF520.2ET.D40.075.6 | 4.0 | 6.0 | 36 | 75 | 6 | 2 | 188.0 |
注：非标准品接受订购，可提供修磨和涂层服务.TEL:14729292929
