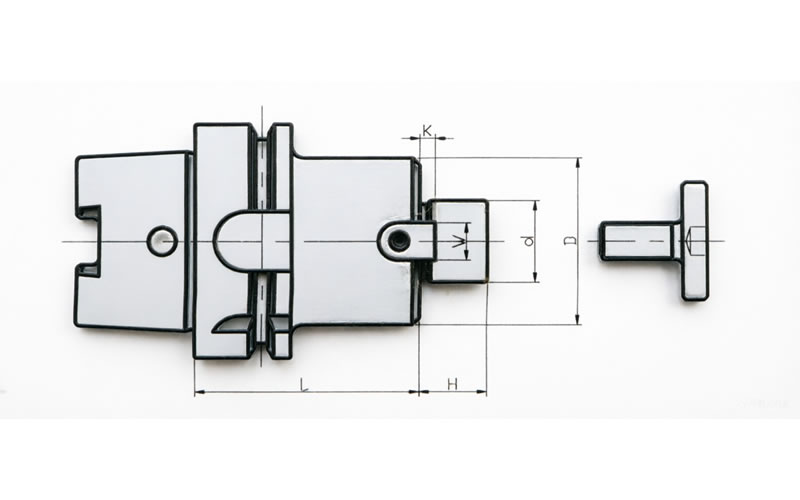

订购号 | L | Ød | ØD | H | K | W |
HSK-A63-FMA25.4-60 | 60 | 25.4 | 50 | 20 | 5 | 9.5 |
HSK-A63-FMA25.4-120 | 120 | 25.4 | 50 | 20 | 5 | 9.5 |
HSK-A63-FMA31.75-60 | 60 | 31.75 | 60 | 22 | 7 | 12.7 |
HSK-A63-FMA31.75-120 | 120 | 31.75 | 60 | 22 | 7 | 12.7 |
HSK-A63-FMA38.1-60 | 60 | 38.1 | 80 | 25 | 9 | 15.9 |
HSK-A63-FMA38.1-120 | 120 | 38.1 | 80 | 25 | 9 | 15.9 |
|
|
|
|
|
|
|
HSK-A100-FMA25.4-60 | 60 | 25.4 | 50 | 20 | 5 | 9.5 |
HSK-A100-FMA25.4-120 | 120 | 25.4 | 50 | 20 | 5 | 9.5 |
HSK-A100-FMA31.75-60 | 60 | 31.75 | 60 | 22 | 7 | 12.7 |
HSK-A100-FMA31.75-120 | 120 | 31.75 | 60 | 22 | 7 | 12.7 |
HSK-A100-FMA38.1-60 | 60 | 38.1 | 80 | 25 | 9 | 15.9 |
HSK-A100-FMA38.1-120 | 120 | 38.1 | 80 | 25 | 9 | 15.9 |
HSK-A100-FMA50.8-60 | 60 | 50.8 | 100 | 28 | 12 | 15.9 |
HSK-A100-FMA50.8-120 | 120 | 50.8 | 100 | 28 | 12 | 15.9 |
